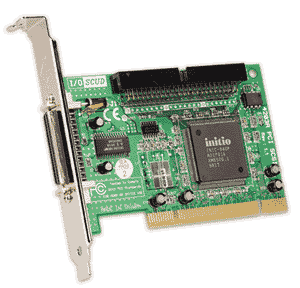

IOI-4203A, PCI Bus Master fast SCSI-2 host adapter with easy plug-and-play installation, offers performance and compatibility in connecting with fast non-booting SCSI peripherals. It is the best choice for a high performance and low cost solution. IOI-4203A takes full advantage of high-speed PCI Bus allowing for true multitasking performance. The SmartSCSI Setup Utility simplifies the SCSI installation process by elimination the need for opening the system chassis to change the jumpers and switch setting.

Features

• PCI Bus Master
• Without SCSI BIOS
• Supports plug and play, Power Management Implement
• Performs fast SCSI bus transfers in single-ended:
  -5 MB/s Asynchronous
  -10 MB/s Synchronous
• Supports SCAM Level 1
• Provides serial EEPROM for SCSI bus configuration
• Provides ASPI manager for DOS, Windows 3.1x and NT for third party applications
• Support MO in Driver for 512, 1024 and 2048 bytes per sector
• Supports passive termination
• Full driver support for major operating systems
• Internal IDC 50pin connector
• External High Density Half pitch 50pin connector

Components

• INITIO INIC-940 PCI-SCSI I/O processor

HOST Interface

• PCI 2.1 compliant interface

Form Factor

• Length: 4.72 inch
• Height: 2.83 inch
